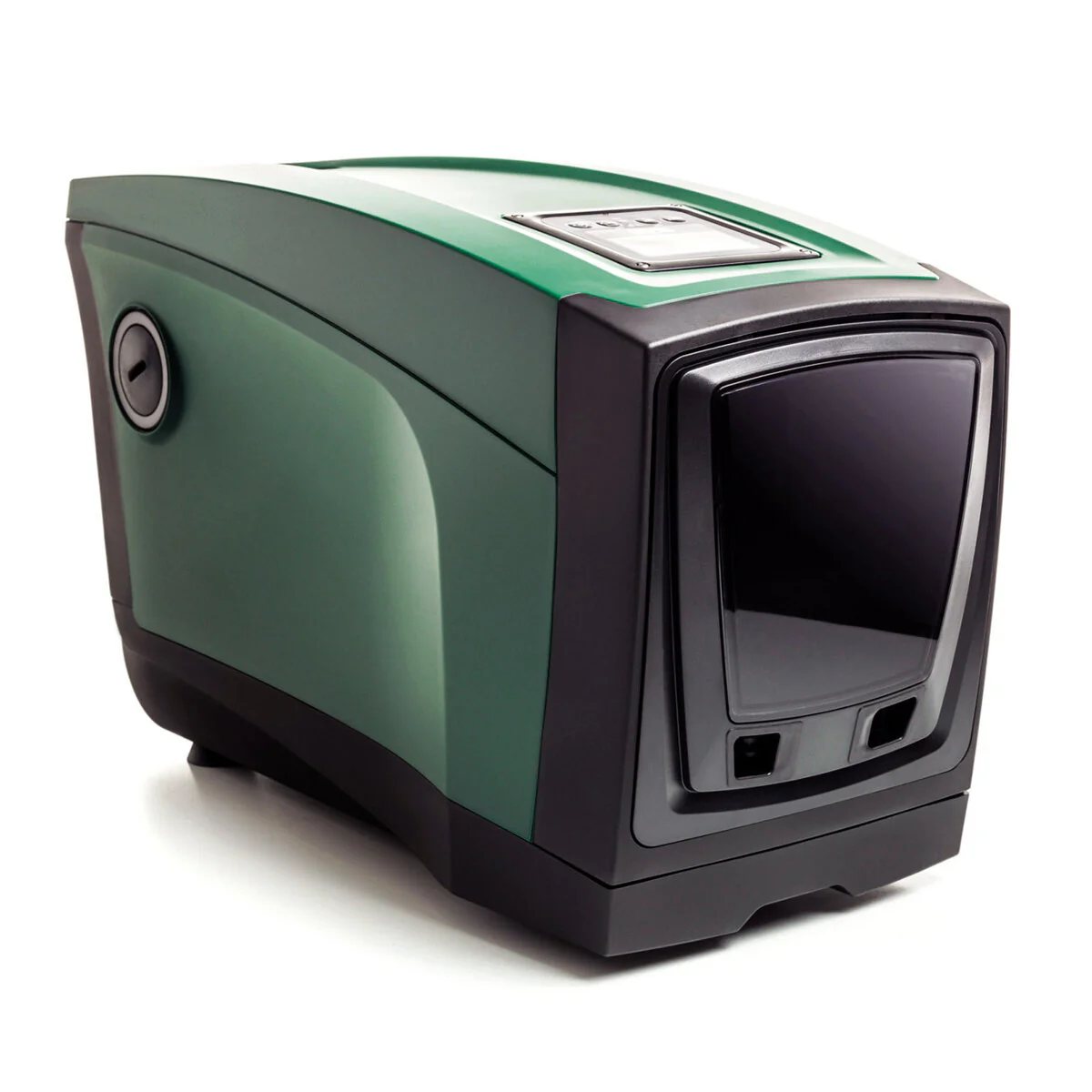

DAB EsyBox inverter autoclave pump 2 HP Wi-Fi

EsyBox DAB inverter autoclave pump 2 HP WiFi - Code 60212309

Rated power 1.4 kW/1.9 HP - Flow rate range 10–120 l/min. - Head range 63.5-2 m - Delivery 1” - Self-priming up to 8 m

EsyBox DAB is the inverter-driven booster pump designed to ensure constant water pressure , reduced consumption, and maximum comfort in domestic and residential water supplies. Winner of the Product Design Award and boasting patents and certifications, it represents one of the most advanced solutions in the industry.

Thanks to inverter technology, the pump automatically adjusts the motor speed based on actual water demand, maintaining stable pressure and significantly reducing energy consumption. The system integrates a self-priming multistage pump , a 2-liter expansion tank , and a swiveling LCD display for setting and monitoring operation.

This new version of EsyBox DAB includes integrated connectivity (Wireless, Wi-Fi, Bluetooth, Modbus) for remote management via the DAB H2D App, useful for monitoring water and energy consumption, receiving notifications of anomalies, activating smart functions such as Power Shower and Good Night even via voice command.

Ideal for homes, villas, condominiums, gardens, irrigation systems, and well supply (up to 8 m). The durable, compact green casing, combined with four installation configurations and surprising silence, make it an extremely versatile pump.



Applications of the EsyBox DAB autoclave pump

EsyBox is designed for domestic water systems and can serve a villa or condominium with up to 6 floors (max 9 apartments) .
Also perfect for:

• Irrigation of vegetable gardens and gardens

• Use with rainwater tanks

• Water supply from wells up to 8 m

• Distribution of drinking water (certified 2-litre overflow tank).

The pumped liquid must be clean water.



High performance, energy savings and maximum comfort

The 1.4 kW (1.9 HP) motor with 5 impellers enables high-level performance:

• Flow rate up to 120 l/min (7.2 m³/h)

• Head up to 65 m

• Noise level of only 43 dB(A), thanks to:

  • encapsulated, water-cooled engine

  • sound-absorbing ABS fairings

  • anti-vibration feet.

The Good Night function further reduces noise, making it suitable for any environment.

The pressure can be adjusted to 5 levels (1–6 bar) and always remains constant thanks to the inverter: no more pressure drops when showering, watering or using the taps simultaneously.

The Power Shower function temporarily activates maximum power for a more comfortable, waste-free shower.

Inverter technology allows savings of up to:

• €310 per year compared to a traditional autoclave

• 11% less consumption than the previous version of EsyBox, maintaining the same performance.



Versatile installation and smart management

Part of the EsyBox Line , the pump is designed for total modularity:

• Vertical or horizontal installation

• Wall mounting option with EsyWall brackets (optional)

• Outdoor installation with EsyCover cover (optional)

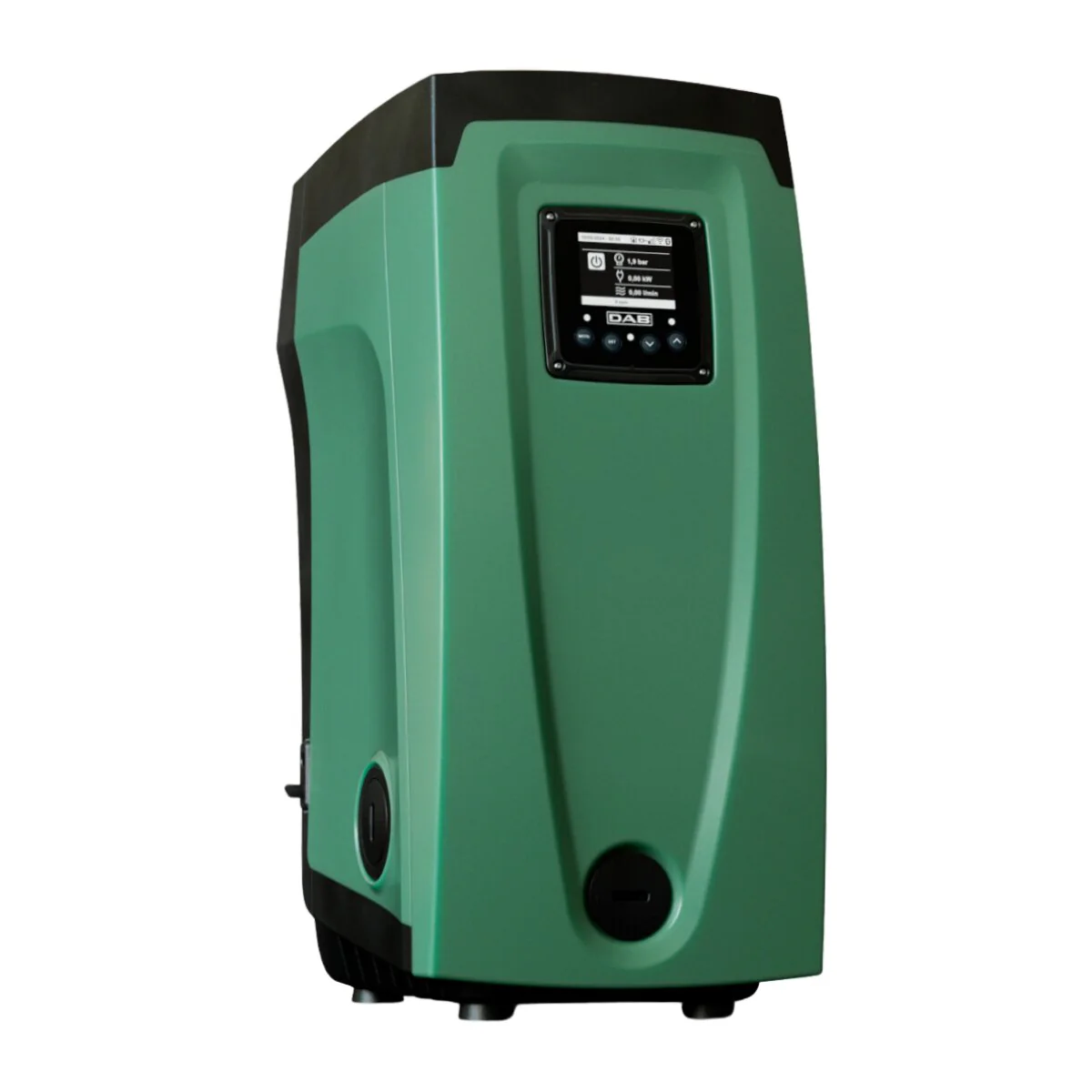

• Intuitive, rotatable LCD display

• Remote management via DAB H2D App (smartphone, tablet, PC)

• Creation of pressurization groups of up to 4 EsyBox pumps with EsyTwin (optional).

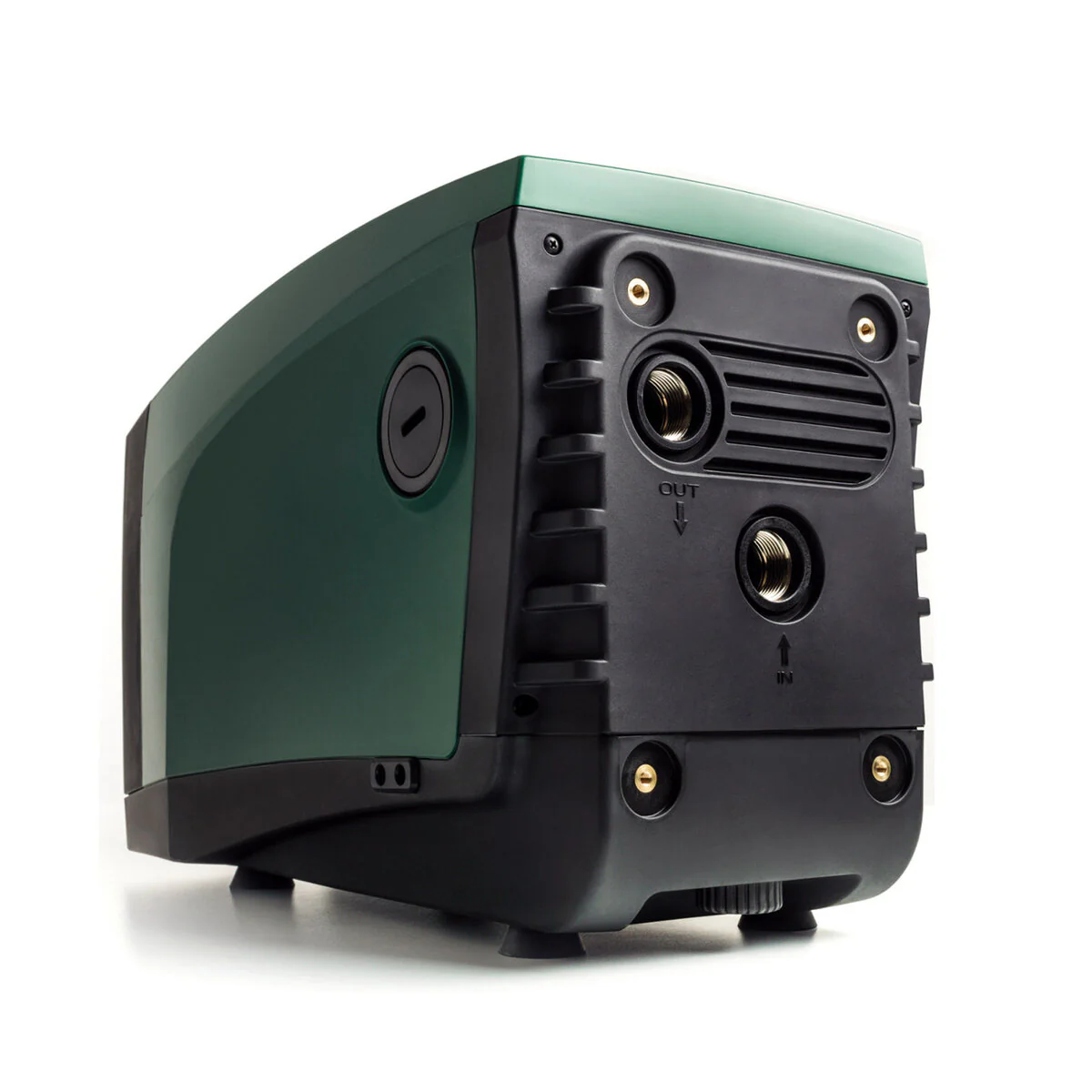

Front and bottom connections with sealing caps, integrated flow and pressure sensors and removable non-return valve for easy maintenance.



Warranty

The warranty is the official DAB Water Technology one and lasts 24 months.
