Zucchetti R99684 built-in part for bath-shower mixers with diverter

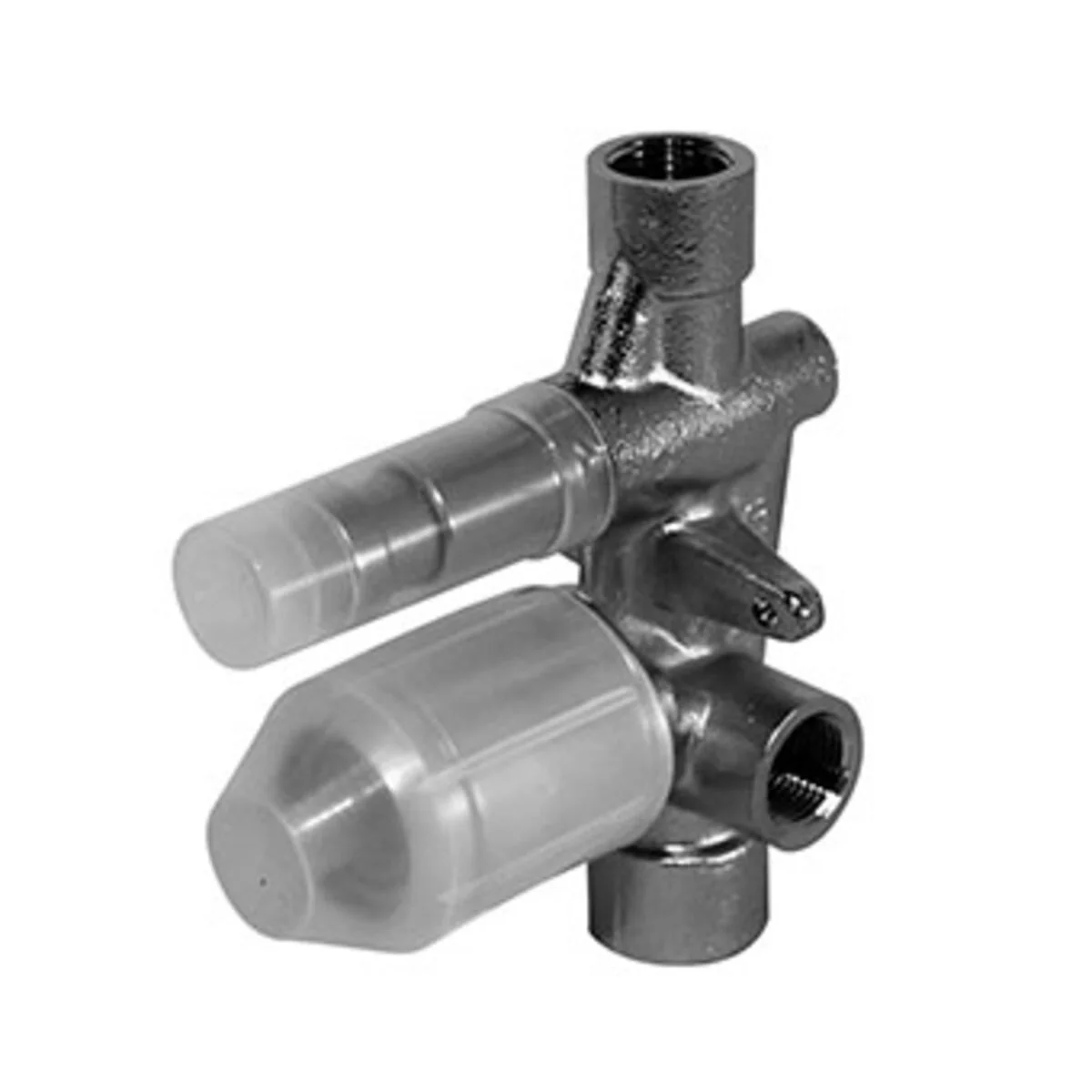

The Zucchetti R99684 built-in part is the technical body designed for wall-mounted single-lever bath/shower mixers with diverter. Belonging to the Zucchetti Built-in Parts category, it represents the fundamental basis for ensuring functionality, reliability, and seamless integration in built-in shower systems.
Technical structure for built-in installation
Designed to be fully integrated into the wall, the R99684 conceals all the technical components, leaving only the external part of the mixer exposed. This creates a clean, modern, and minimalist aesthetic, ideal for designer bathrooms.

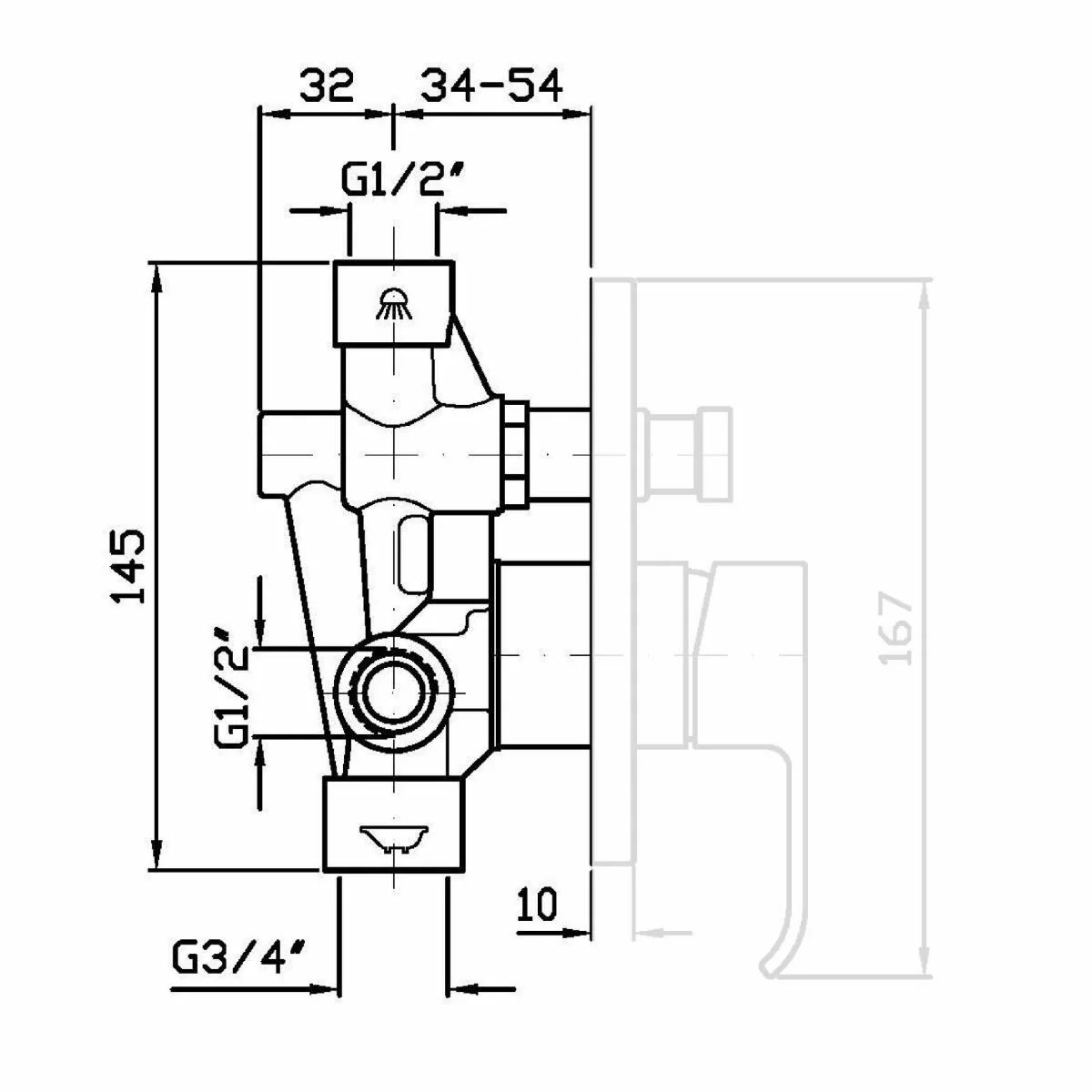

The body is equipped with plastic protections for the installation and finishing phase, facilitating assembly and preventing damage during work (visible in the technical drawing on page 2).
Integrated diverter and double outlet
The built-in part integrates a system with internal diverter , which allows the management of two water outlets:
- primary outlet (e.g. shower head or bath spout)
- secondary outlet (e.g. shower)
This configuration allows for versatile and complete use of the shower system.
High performance
As highlighted in the chart on page 3:
- Primary output: up to approximately 34 l/min at 5 bar
- Secondary output: up to approximately 30 l/min at 5 bar
It therefore guarantees high performance and a plentiful and constant flow of water, ideal for both showers and filling the bathtub.
Technical features
- Type: built-in part for bath-shower mixer with diverter
- Installation: wall-mounted
- Diverter: integrated for double outlet
- Attacks:
- G1/2” inputs
- G1/2” top outlet
- G3/4” lower outlet (as per technical drawing page 2)
- Recess depth: minimum approximately 50 mm – maximum 80 mm
- Weight: about 1.44 kg
Compatibility
The R99684 built-in part is designed to be used with Zucchetti external mixers equipped with a diverter, in particular:
GILL - NIKKO - RIVO series (LAB line)
- ZGL127 (built-in bath-shower)
- ZKK127 (built-in bath-shower)
- ZRV127 (built-in bath-shower)
In general:
- Zucchetti built-in bath-shower mixers with diverter compatible with this built-in body
Note: it is always recommended to check compatibility with the specific external code, but R99684 is one of the standard Zucchetti bodies for 2-way configurations (shower + secondary outlet) .
Professional installation
The R99684 requires wall installation with pre-installation. It is ideal for:
- new bathroom creations
- complete renovations
- medium-high range built-in shower systems
NB: FOR FURTHER DETAILS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.
WARRANTY
The warranty is the official Zucchetti one and lasts 2 years.
