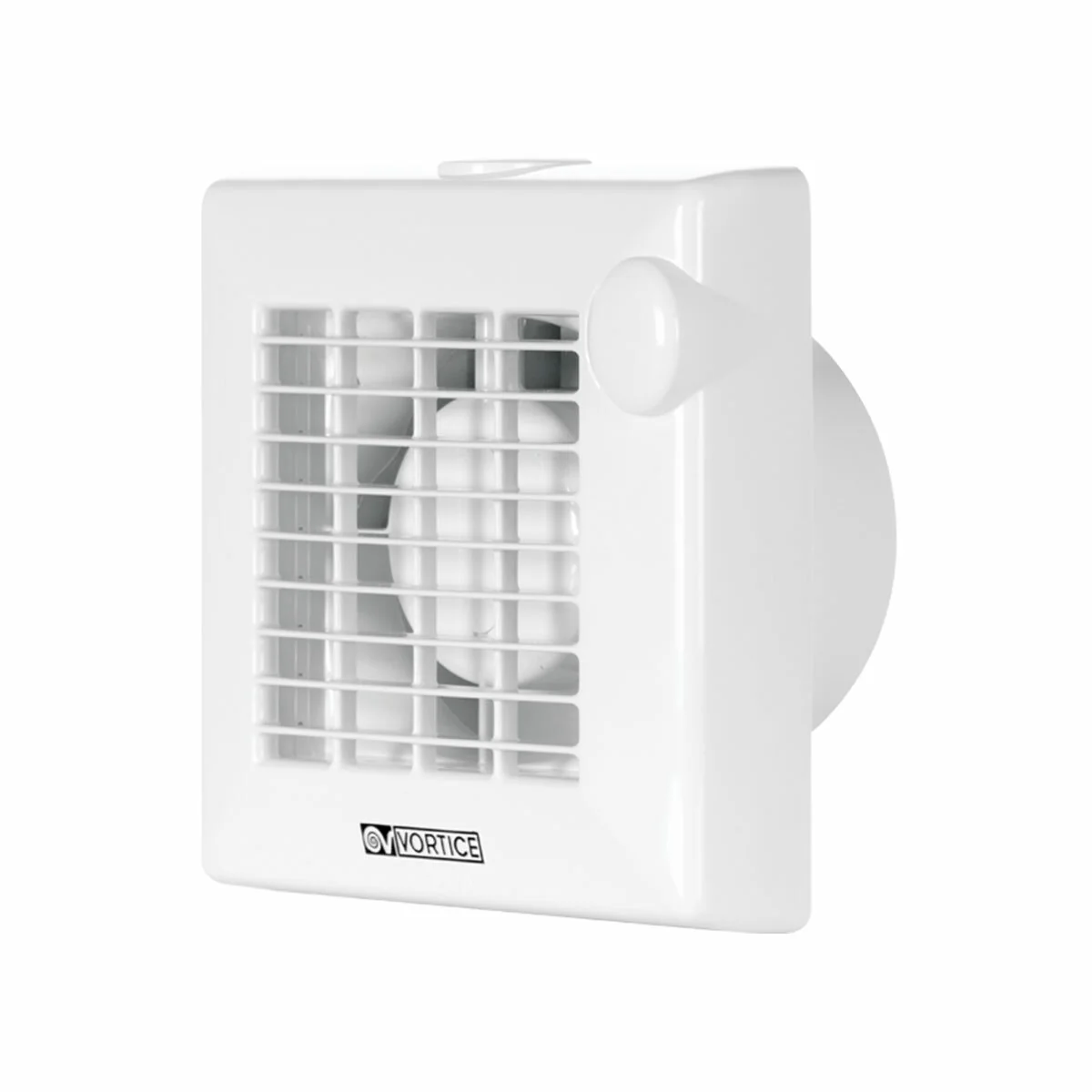

Vortice M 100/4'' wall-mounted helical extractor
Vortice brand ventilation systems represent products on the market that fully satisfy the customer's needs, as they are developed and oriented towards improving performance and reducing energy consumption, in line with the utmost respect for the environment. The Vortice company stands out for its policy of constant and continuous quality improvement, pursuing the strategic line of offering high-end products and services to the market.

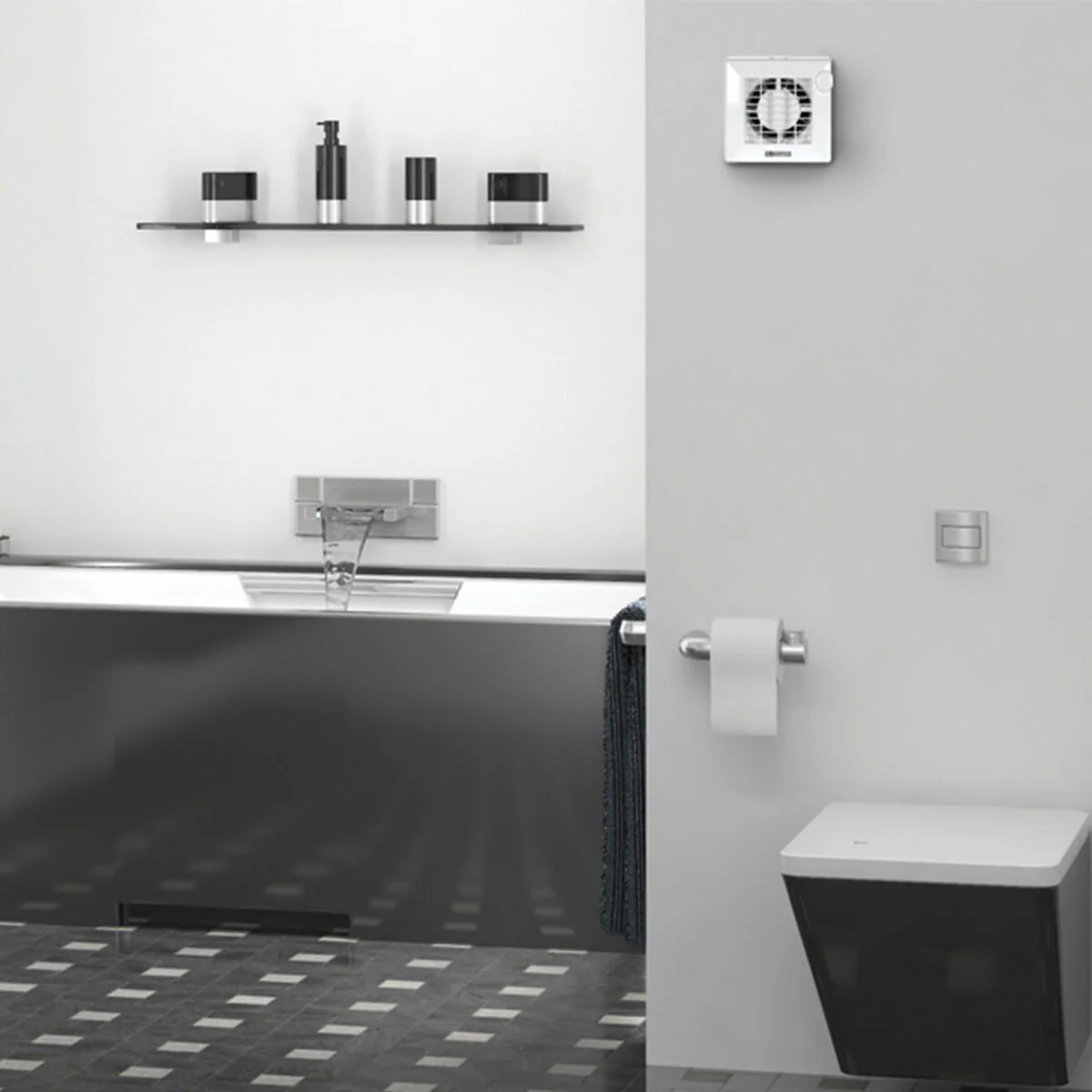

The Vortici M 100/4'' aspirator, with its compact and discreet shape, adapts perfectly to spaces and is able to extract saturated air from rooms and bad smells, guaranteeing healthier environments.
Technical features
- Construction in plastic resin resistant to aging due to exposure to the sun ("UV resistant").
- Nominal diameter 100 mm.
- Thermally protected motor with shaft on self-lubricating bushing supports, combined with a helical impeller in thermoplastic material with aerofoil blades.
- Maximum flow rate 90 m3/h.
- IMQ and IMQ PERFORMANCE certified safety and performance
- Speed controllable via Vortice regulator.
ENERGY YIELD DATA
-Max absorbed current (A): 0.1
-Nominal Duct Diameter (mm): 100
-Frequency (Hz): 50
-IP Protection Rating: X4
-Insulation: II class
-Drain: diameter 99 mm
-Max absorbed power (W): 18
-Max power absorbed at max speed. (W): 18
-Temp. max continuous operation environment (°C): 50
-Voltage (V): 230-240
-Max flow rate (l/s): 25
-Max flow rate (m³/h): 90
-Max pressure (mmH2O): 3
-Max pressure (Pa): 29
-Sound pressure Lp [dB (A)] 3m: 37.5
-RPM: 2300
DIMENSIONS
Width: mm. 159 – Depth: mm. 100 - Height: mm. 160
weight: 0.6 kg.
WARRANTY
The warranty is the official Vortice one and has a duration of 24 months.
