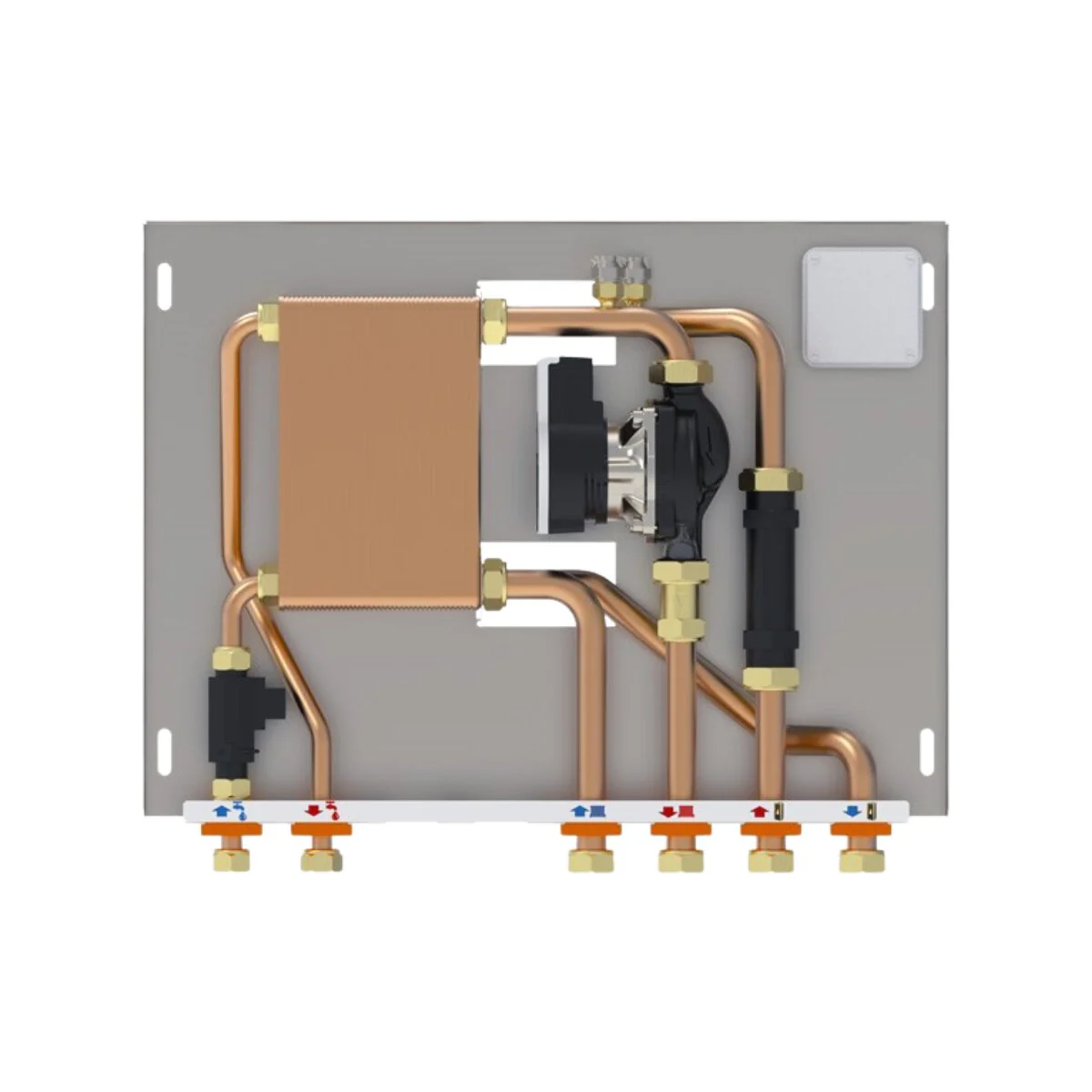

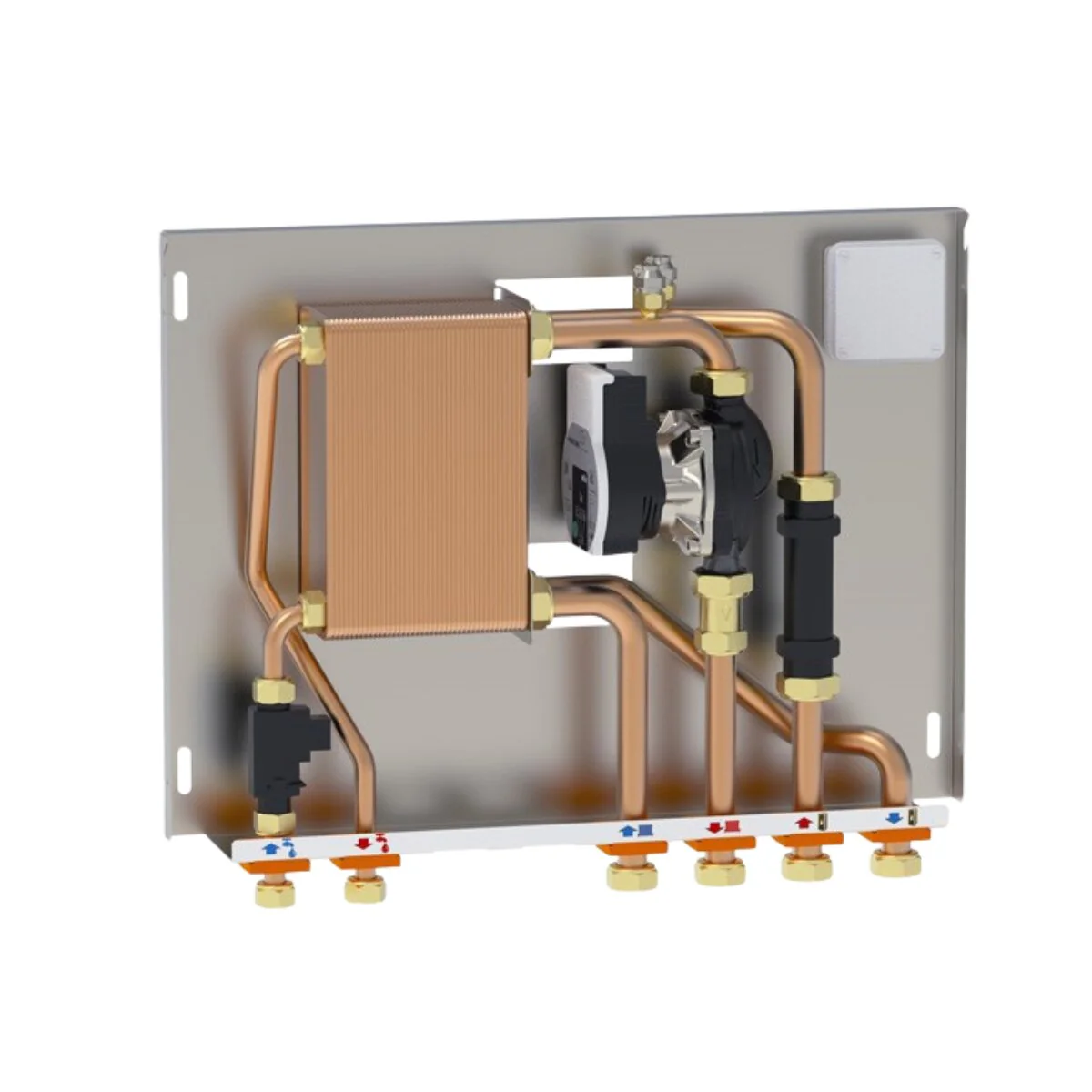

Maxiflame MX135/2 Mini Boiler/Thermoproduct Interface Module with DHW Production
The MX135/2 Mini cod. 135211 from Maxiflame is a compact interface module designed to integrate a gas boiler and a biomass thermoproduct , ensuring the hydraulic separation of the circuits and the automatic management of heating and domestic hot water production.
Thanks to the three-circuit exchanger , the module allows the instantaneous production of DHW , without the need for storage, maintaining small dimensions ideal for domestic installations.
What is it for?
- separate the circuits between the boiler and the thermoproduct
- automatically manage heating
- produce instantaneous ACS up to 12 l/min
A compact module for a complete system.
How it works
- the boiler works initially
- when the thermoproduct reaches the temperature, it automatically takes over
- the module manages the DHW priority via flow switch and distributes the heat to the system
Everything happens automatically, optimizing consumption and comfort.
Applications
Ideal for:
- apartments or homes with limited space
- systems with thermo-fireplace/hydro stove + boiler
- systems without boiler, with instantaneous DHW
As visible in the installation diagram, the module is inserted between the generators and the system, also managing the sanitary utilities.
Technical data
- Power: 30–35 kW
- DHW production: up to 12 l/min
- System exchanger: 20 + 34 AISI 316 L stainless steel plates
- Sanitary exchanger: 16/20 AISI 316 L stainless steel plates
- Circulator: Wilo PARA 15/6 SC (Mini configuration with one pump)
- Connections: 1/2” ACS – 3/4” system
- Dimensions: 503 x 500 x 115 mm
Differences from other MX135 models
MX135/2 (standard)
- ✔ double circulator
- ✔ more performance
- ❌ more cumbersome
MX135/2 Mini (this model)
- ✔ more compact
- ✔ a single pump (managed by control unit)
- ✔ ideal for small spaces
MX135/1 / 1V
- ❌ they do not produce ACS
- ✔ heating or sanitary flow management only
this model is therefore:
the compact version of the MX135/2 with integrated ACS
When to choose it
Choose the MX135/2 Mini if:
- you have little technical space
- Do you want instant ACS without storage?
- you have a hybrid biomass + gas system
The MX135/2 Mini 135211 is the ideal solution for those who want a complete and compact system, capable of automatically managing heating and domestic hot water, guaranteeing efficiency, simplicity and integration between sources.
NB: For further technical details, please see the attached technical data sheet.
WARRANTY
The warranty is the official Maxiflame one and lasts 2 years.
