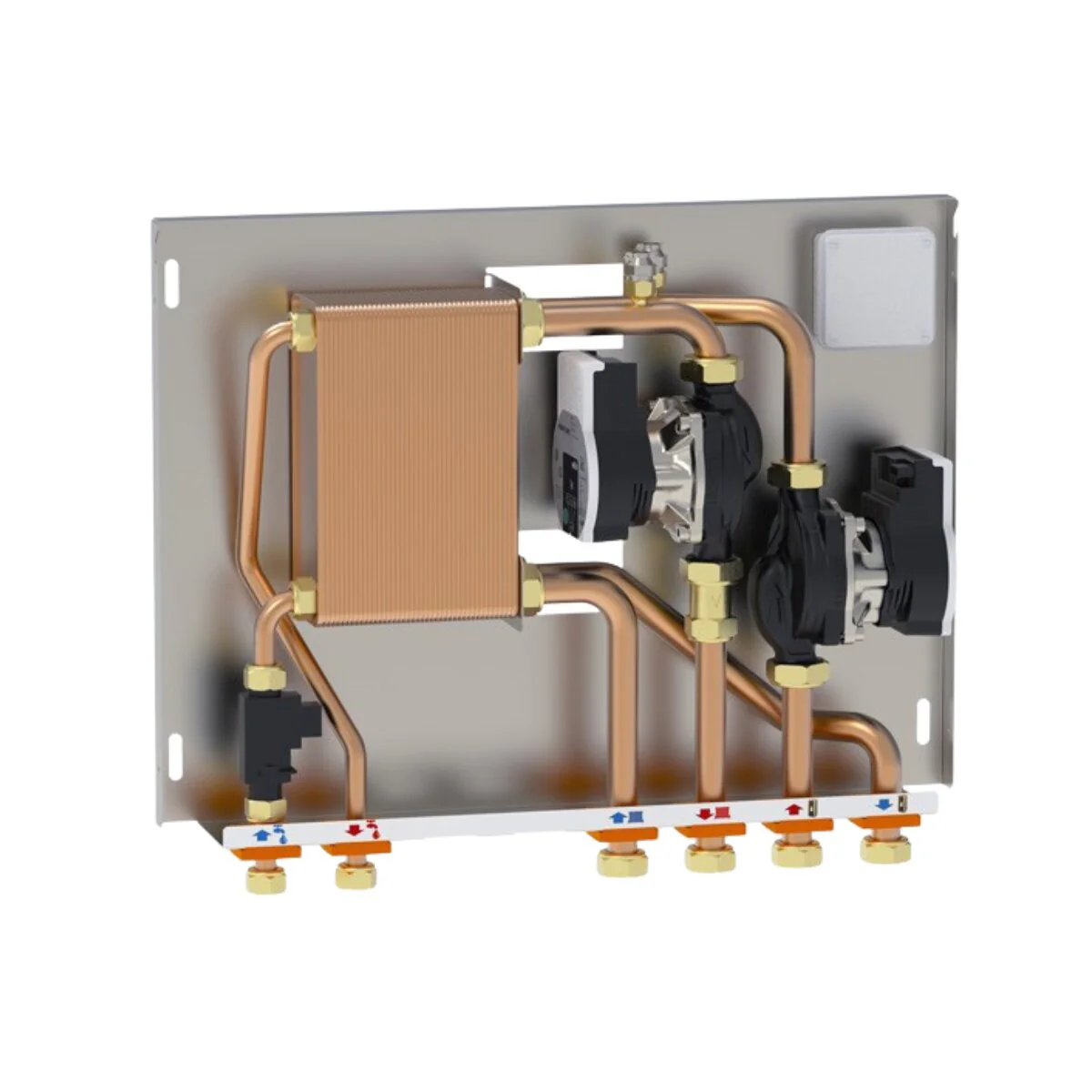

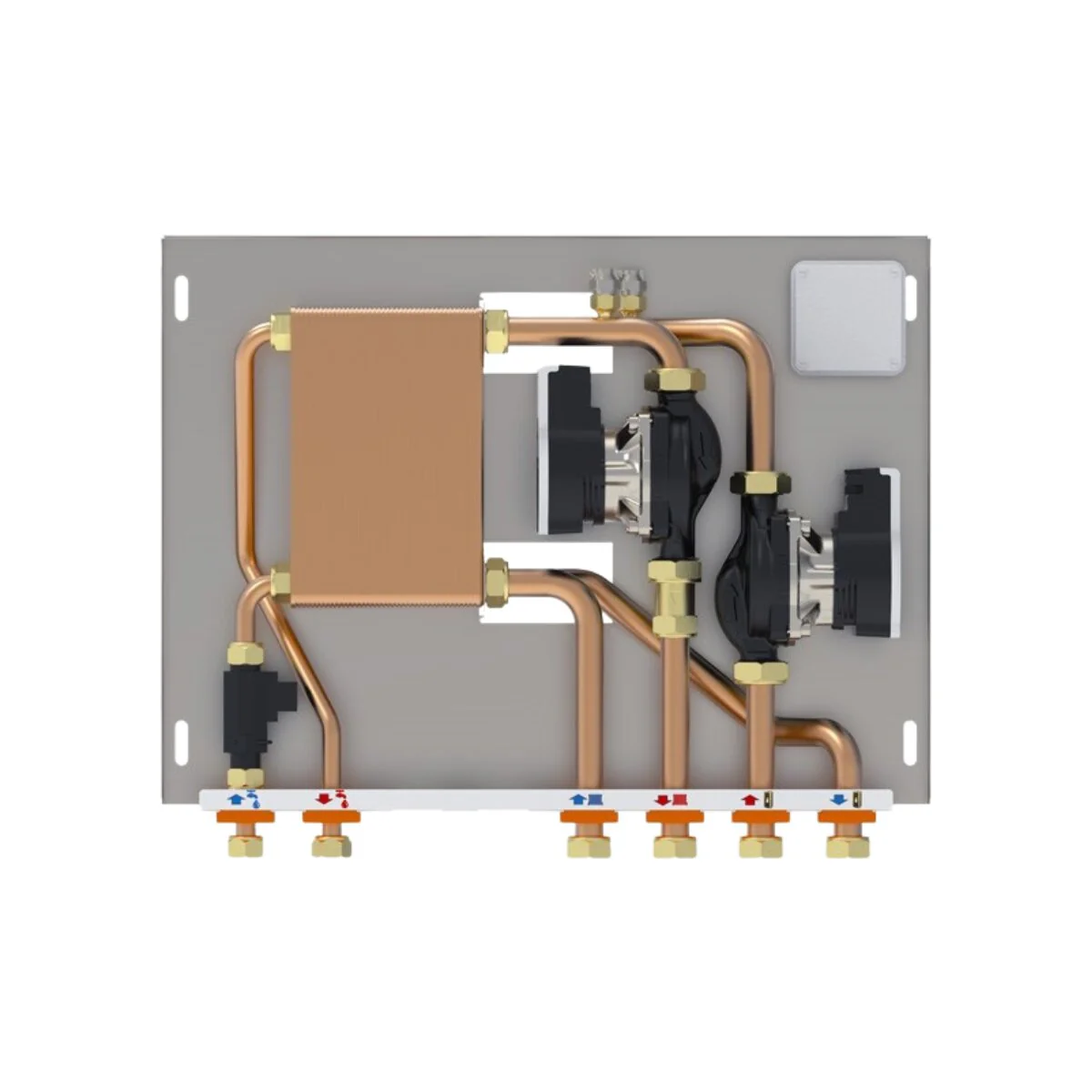

Maxiflame MX135/2 Boiler/Thermoproduct Interface Module with DHW Production

Maxiflame MX135/2 Boiler/Thermoproduct Interface Module with Instantaneous DHW Production



The Maxiflame MX135/2 is an interface module designed to integrate a gas boiler and a biomass thermoproduct , ensuring hydraulic separation of the circuits and compliance with INAIL regulations.

Unlike standard models, it integrates a three-circuit plate exchanger that allows the instantaneous production of domestic hot water (DHW) , in addition to heating management.

What is it for?

• separate the circuits between the boiler and the thermoproduct

• automatically manage heating

• produce instantaneous ACS directly from the module

A single solution for a complete system.

How it works

• the boiler works as an initial support

• the thermoproduct takes over when it is at temperature

• the module produces DHW via a dedicated exchanger with flow switch and DHW priority

Applications: it is designed for systems with TWO generators

The MX135/2 is useful when you have:

• thermoproduct (hydro stove/thermo fireplace)

• gas backup boiler

and you want:

• separate circuits (regulatory requirement)

• automatically manage who works

• produce instantaneous DHW without a boiler

Technical data

• Power: up to 35-40 kW

• DHW production: up to 12 l/min

• Sanitary exchanger: 16/20 AISI 316 L stainless steel plates

• Circulator: Wilo PARA 15/6 SC

Differences from other MX135s

• ✔ MX135/1 → heating only

• ✔ MX135/1V → ACS management (does not produce it)

• ✔ MX135/2 → produces ACS directly

It is the most complete module in the range.

When to choose it

• Do you want to eliminate boilers or accumulators?

• Do you want immediate ACS from the thermoproduct?

• you want a compact and fully integrated system



NB: FOR FURTHER TECHNICAL SPECIFICATIONS WE RECOMMEND VIEWING THE ATTACHED TECHNICAL DATA SHEET.

Please note that the technical data sheet does not explicitly report the code 135203. For consultation purposes, it is possible to refer to the code 135201, with which it shares the same technical characteristics, differing only in internal sizing (more powerful and stable exchanger) and power (35-40 kW).



WARRANTY

The warranty is the official Maxiflame one and lasts 2 years.
