Maxiflame MX135/1 Mini Boiler/Thermoproduct Interface Module

Maxiflame MX135/1 Mini Boiler/Thermoproduct Interface Module



The MX135/1 Mini cod. 135111 by Maxiflame is a module designed to safely connect a gas boiler and a biomass thermoproduct , separating the two circuits via a plate exchanger . This solution allows for the creation of a hybrid system compliant with INAIL regulations, avoiding the sum of the power and ensuring the correct operation of the generators.

Ideal for homes with a thermo-fireplace or hydro-stove and an existing boiler , the module automatically manages the transition between the sources: initially the boiler works, then the thermo-product starts working when it reaches the temperature, improving efficiency and reducing consumption.

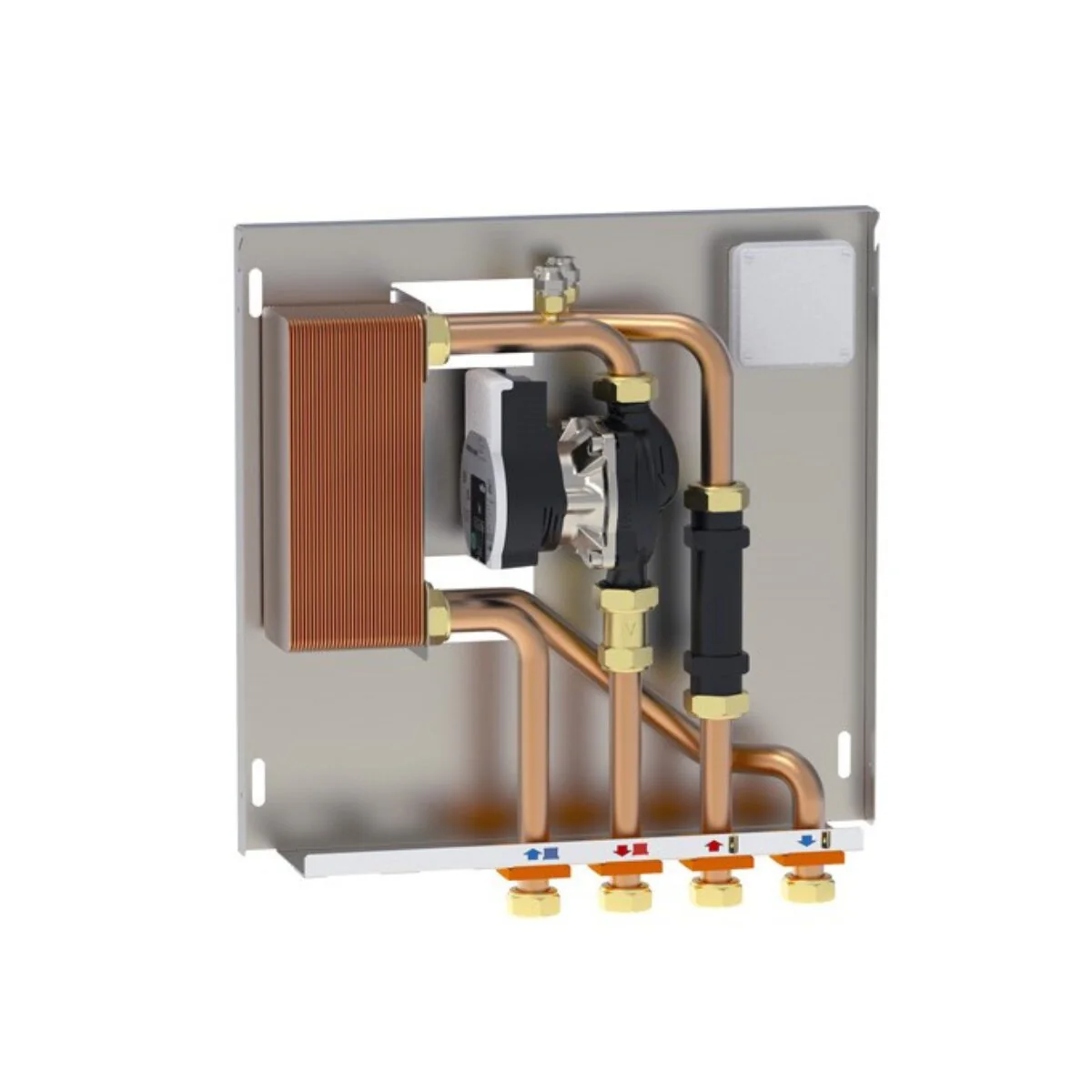

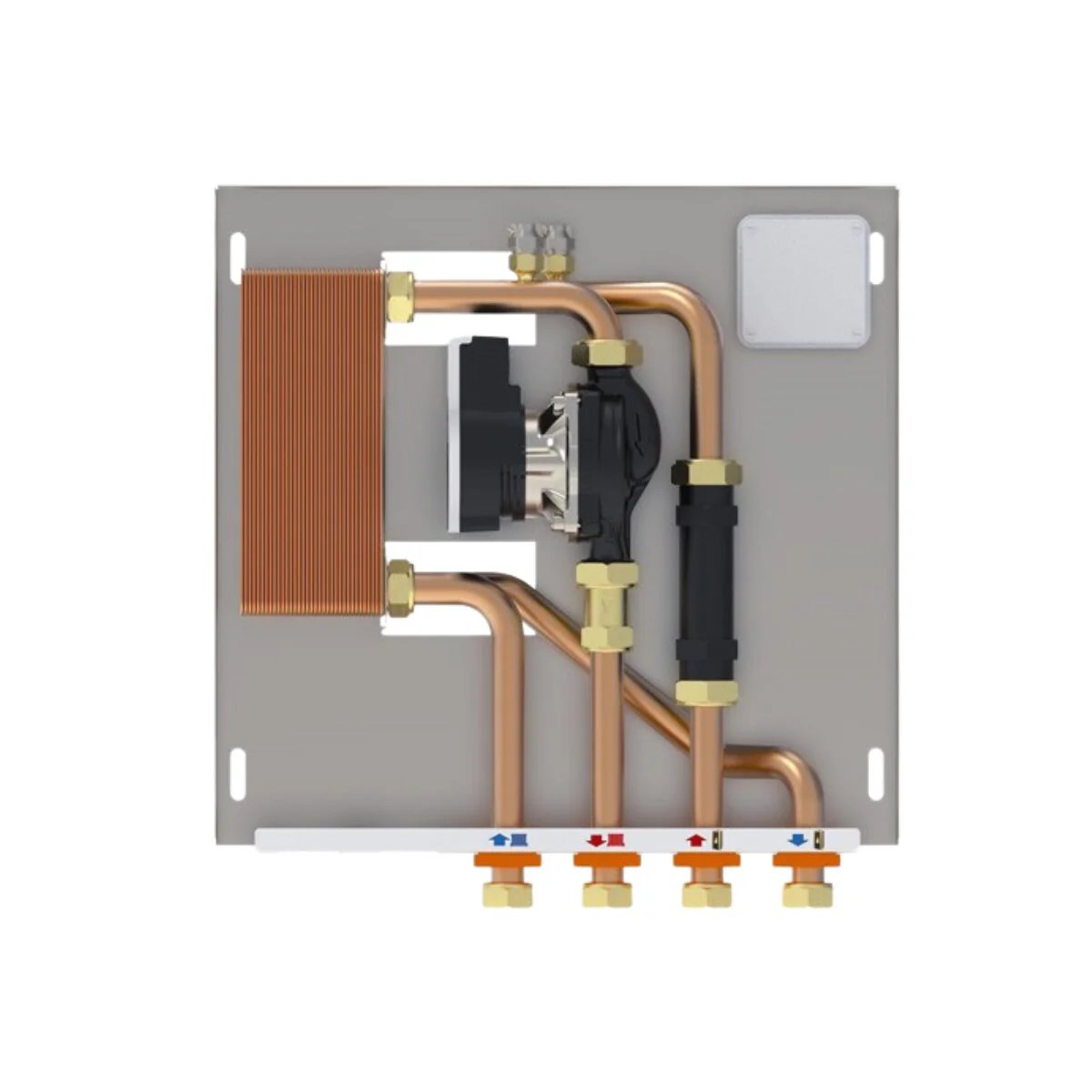

Model 135111 is the Mini version with a larger exchanger with 34 plates in AISI 316 L stainless steel , suitable for systems up to 30–35 kW , with 3/4” connections and Wilo PARA 15/6 SC circulator.

Compact and easy to install, it is the ideal solution to make your system safer, more efficient and perfectly integrated between biomass and gas.

What is it for?

It is used to connect two different generators (gas + wood/pellet) in the same system, keeping the following separate:

• open vessel circuit (biomass)

• closed vessel circuit (boiler)

In practice: it makes the two systems work together without risks.

How it works

The heat is transferred through the exchanger without mixing the circuits:

• the boiler starts

• when the thermoproduct is hot, it takes its place

• all automatically with external management (control unit).

Applications

Ideal for:

• thermo-fireplaces and hydro- thermo-stoves

• systems with existing gas boiler

• homes with domestic hybrid systems

Technical data

• Power: 30–35 kW

• Exchanger: 34 AISI 316 L stainless steel plates

• Connections: 3/4”

• Pressure: 6 bar

• Circulator: Wilo PARA 15/6 SC

Difference from other models

Compared to the MX115

• same principle (circuit separation)

• but more powerful and suitable for larger systems

• designed for more structured integrations

Compared to MX135 with control unit (HBL/SLX)

• ❌ it does not have an integrated control unit

• ✔ requires external management

• ✔ more flexible and often cheaper

Compared to the MX120

• ❌ It does NOT produce domestic hot water

• ✔ it is dedicated only to heating

When to choose it

This is the right form if:

• do you have a boiler + hydro fireplace

• you want a safe and compliant system

• you need more power than the basic modules



NB: FOR FURTHER TECHNICAL SPECIFICATIONS WE RECOMMEND VIEWING THE ATTACHED TECHNICAL DATA SHEET.



WARRANTY

The warranty is the official Maxiflame one and lasts 2 years.
