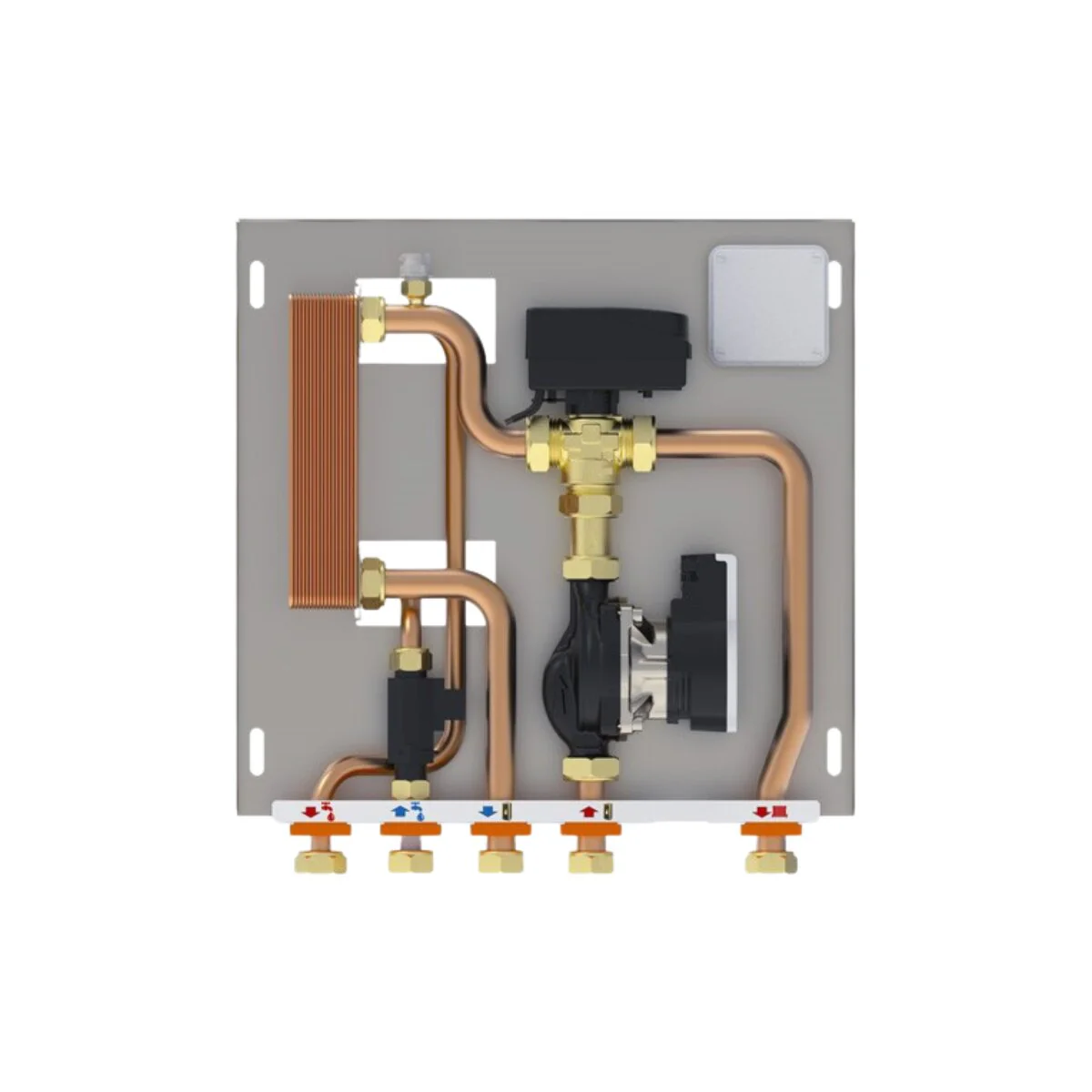

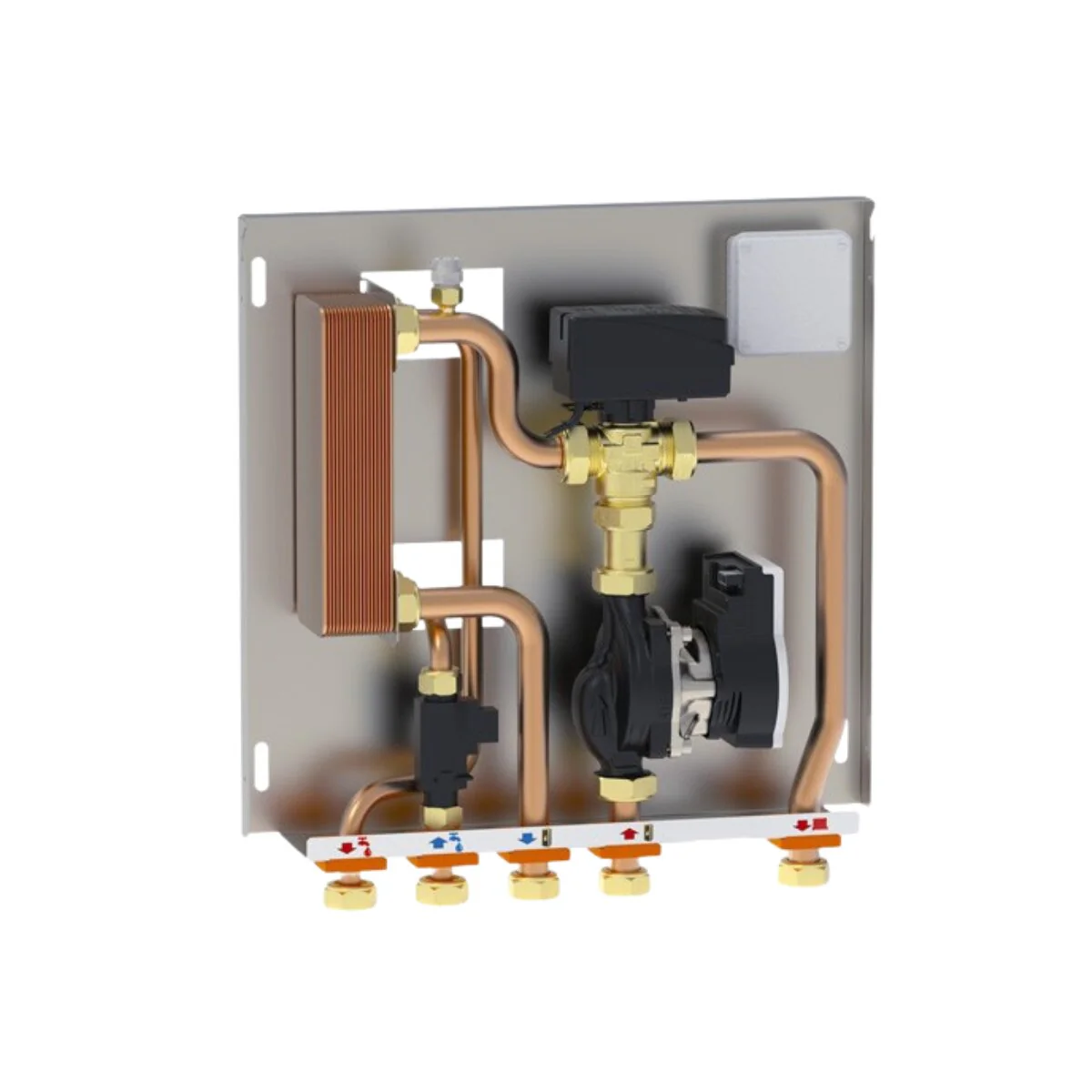

Maxiflame MX120/1 Thermoproduct/ACS Interface Module

Maxiflame MX120/1 Thermoproduct/ACS Interface Module



The MX120/1 from Maxiflame is an interface module designed to transform a thermo-fireplace or a thermo-stove into a complete heating and domestic hot water (DHW) production system .

It is the ideal solution for those who use a biomass generator and want to obtain instant domestic hot water without installing a boiler or using gas/electricity .

What is it really for?

This module allows you to:

• heat the house

• produce immediate domestic hot water (up to 12 l/min)

• automatically manage priorities between system and sanitary

In practice: with a single fireplace you can have both radiators and hot water in your home.

How it works

• The thermo fireplace heats the system normally

• When you open a tap:

  • the flow switch detects the request

  • the diverter valve switches the flow

  • the exchanger produces instantaneous DHW

The system prioritizes domestic hot water, ensuring immediate comfort without accumulation

Where to use it

The MX120/1 is ideal for:

• homes with a thermo-fireplace or hydro-stove

• biomass systems without DHW production

• detached houses and villas

• who wants to eliminate a water heater or gas boiler

Perfect for systems where the thermoproduct is the only heat source.

NB: A hydro generator is required

To work, you must have:

• hydro fireplace

• hydro stove

• biomass boiler

• thermo-cooker with water circuit

that is, a generator that:
heats water and sends it into the system.

Concrete advantages

✔ DHW production without boiler
✔ savings on gas and electricity
✔ simpler and more compact system
✔ instant hot water
✔ exploit 100% of the heat from the biomass

Transform your system into a complete and more efficient system.



Technical features

• 20-plate AISI 316L stainless steel plate exchanger

• DHW production: 12 l/min

• Useful power: approximately 30 kW

• Circulator: Wilo PARA 15/6 SC

• High speed motorized diverter valve (~3 sec)

• Flow switch for sanitary priority

• Connections: 3/4”

• Nominal pressure: 6 bar



When to choose MX120/1

Choose it if:

• you only have a thermo fireplace

• you also want domestic hot water

• you don't want to install a boiler

It is not a module to integrate multiple generators (like MX115), but to add the ACS function to your system .

The MX120/1 is the perfect choice for those who want a simple, efficient and complete system, transforming their fireplace into a real boiler for the whole house.



NB: FOR FURTHER TECHNICAL DETAILS WE RECOMMEND VIEWING THE ATTACHED TECHNICAL DATA SHEET.



WARRANTY

The warranty is the official Maxiflame one and lasts 2 years.
