Maxiflame MX115/1 Mini Boiler Thermoproduct Interface Module

Maxiflame MX115/1 Mini Boiler Thermoproduct Interface Module



The MX115/1 Mini from Maxiflame is a compact interface module designed to intelligently integrate two heat generators : a traditional boiler (gas) and a solid fuel thermoproduct (wood/pellet), ensuring safety, efficiency and ease of management.

It does NOT have an integrated control unit (it is optional), it requires external management (thermostats/separate control unit).

What is it for?

This module was created to solve a very common problem: how to use two different heat sources without complicating the system and avoiding regulatory issues.

Thanks to the integrated plate heat exchanger , the MX115/1 Mini:

• hydraulically separates the two circuits

• avoid adding the power of the generators (required by INAIL regulations)

• allows the safety systems of each generator to function correctly

In practice: you can use the boiler and the thermo-fireplace/stove together in complete safety.



How it works

Operation is completely automatic:

The system starts with the traditional boiler

When the thermoproduct reaches the set temperature:

• its circulator starts working

• the module transfers heat to the system

• the boiler switches off automatically

Result: you always use the most convenient source without having to intervene manually.



Where to use it

The MX115/1 Mini is ideal for:

• homes with thermo-fireplaces, hydro stoves or wood/pellet boilers

• domestic systems with a gas boiler already installed

• who wants to integrate two systems without redoing the entire system

It is designed for home use and can be easily installed on the wall thanks to its compact design.



Why it's useful (and why you should buy it)

WITHOUT this form:

• risks of complex and non-compliant systems

• the two generators "argue" with each other

• you waste energy and money



WITH the MX115/1 Mini:

• use the heat of wood/pellets when it's convenient
• reduce gas consumption
• you have a safer and more compliant system
• everything works automatically
• improve overall system efficiency



In short: you save money, simplify and make your system professional.

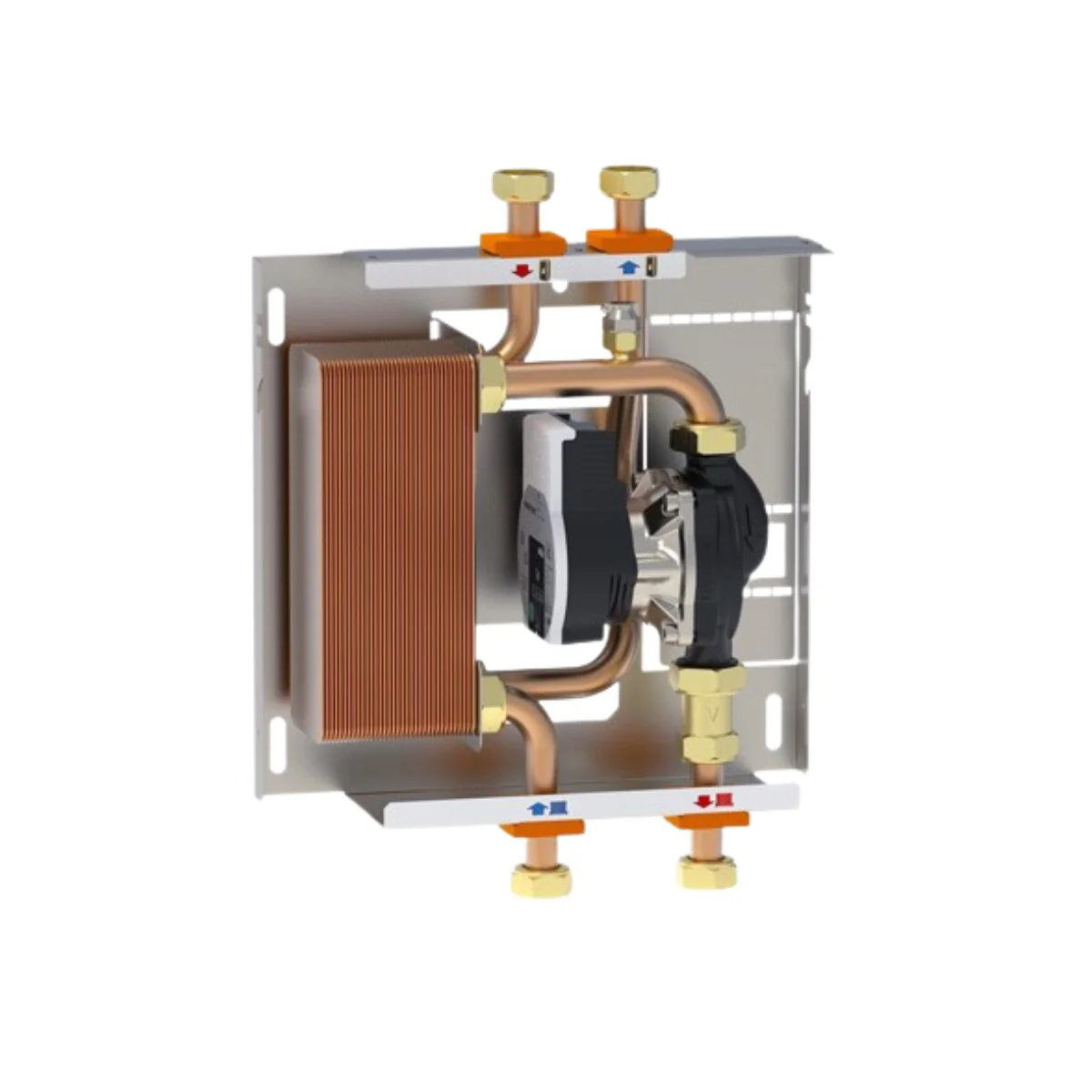

Main components

The module is complete and ready for installation:

• Wilo PARA 15/6 SC high-efficiency circulator

• AISI 316 L stainless steel plate exchanger

• air vent valve

• non-return valve

• wall fixing kit

• cover box included



Main technical data

• Connections: G 3/4”

• Maximum operating pressure: 3 bar

• Exchanger: AISI 316 L stainless steel

• Circulator: Wilo PARA 15/6 SC

• Area of use: systems up to approximately 25–30 kW



Typical installation

The module is positioned between the two generators and the system, as shown in the diagram (attached):

• connect boiler, thermoproduct and system

• automatically manages flows and priorities

Installation must be carried out by qualified technical personnel.



The MX115/1 Mini is the ideal solution for those who want:

• integrate two heat sources intelligently

• reduce energy costs

• have a safe, efficient and automatic system



A small module that makes a big difference in home comfort and energy consumption.



NB: FOR FURTHER TECHNICAL SPECIFICATIONS WE RECOMMEND VIEWING THE ATTACHED TECHNICAL DATA SHEET.





WARRANTY

The warranty is the official Maxiflame one and lasts 2 years.
