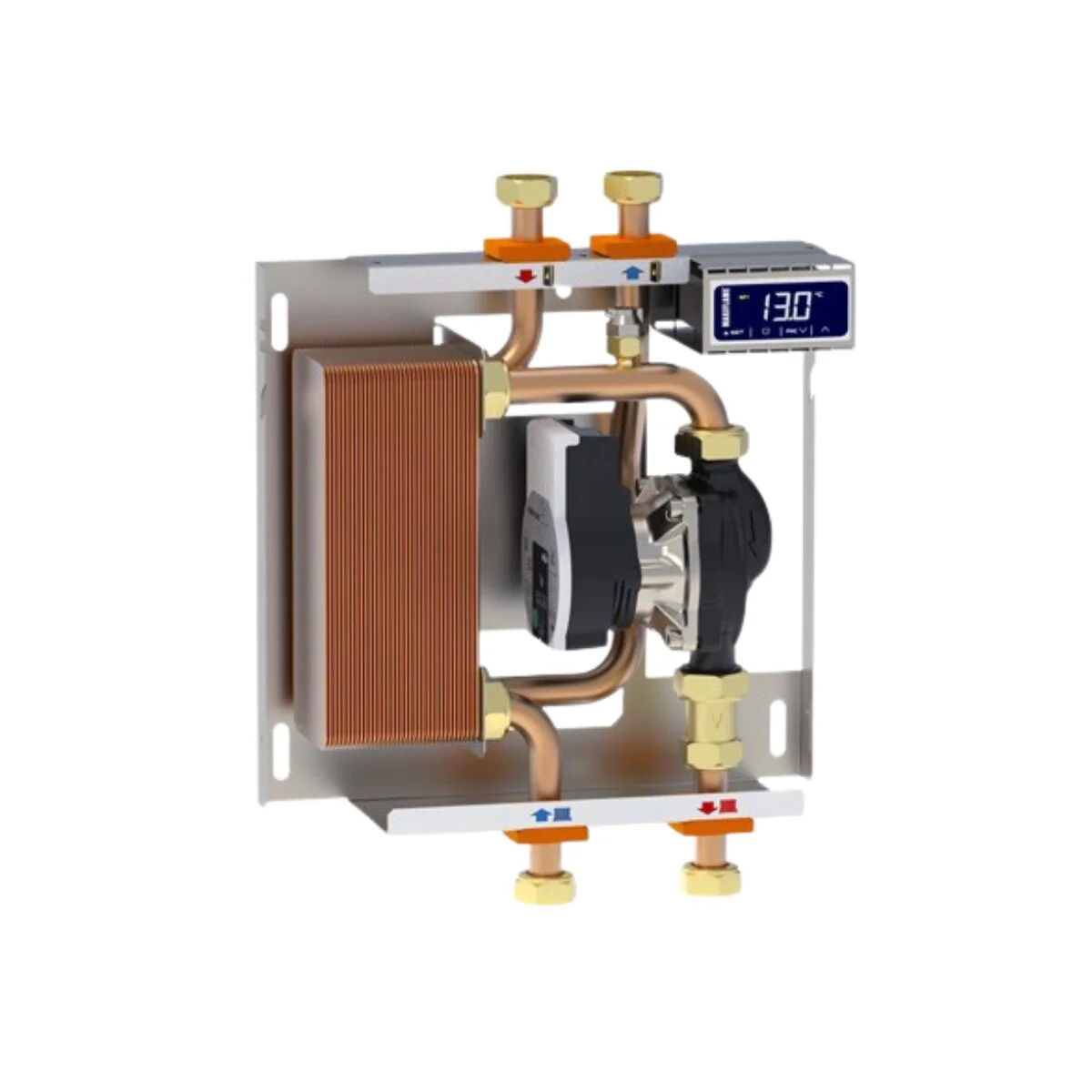

Maxiflame MX115/1 HBL Mini Boiler Thermoproduct Interface Module - with integrated control unit

Maxiflame MX115/1 HBL Mini Boiler Thermoproduct Interface Module - with integrated control unit



The MX115/1 HBL Mini from Maxiflame is an advanced interface module designed to automatically and efficiently manage two heat generators : a traditional boiler (gas) and a solid fuel thermoproduct (wood or pellets).

Unlike the basic version, this model is equipped with an integrated electronic control unit , which allows for even more precise and intelligent management of the system.



What is it for?

The module allows you to integrate two heat sources into the same domestic system in a safe and regulatory-compliant manner.

Thanks to the plate exchanger , the two circuits remain separate:

• no interference between boiler and thermoproduct

• compliance with INAIL regulations (no sum of powers)

• correct functioning of safety systems

In practice: you can use gas and wood/pellets at the same time without complications.



How it works (simple and automatic)

The system works completely autonomously:

The system is initially powered by the traditional boiler

When the thermoproduct reaches the right temperature:

• the control unit activates the dedicated circulator

• the heat is transferred to the exchanger

• the module powers the system

• the boiler switches off automatically

The HBL control unit manages everything without manual intervention, optimising consumption.



Where to use it

The MX115/1 HBL Mini is ideal for:

• homes with thermo-fireplaces, thermo-stoves or biomass boilers

• domestic systems with a gas boiler already installed

• renovations where you want to integrate a second generator

• detached houses, villas or apartments with independent heating system



Why it's useful (and why you should buy it)

WITHOUT an interface module:

• generators can conflict

• plant risks increase

• efficiency and control are lost

WITH the MX115/1 HBL Mini:

• make the most of the heat from wood or pellets
• reduce gas consumption
• you have an automatic and intelligent system
• improved safety and regulatory compliance
• simplify the management of the entire system

It is the perfect solution to make a hybrid system modern and efficient.

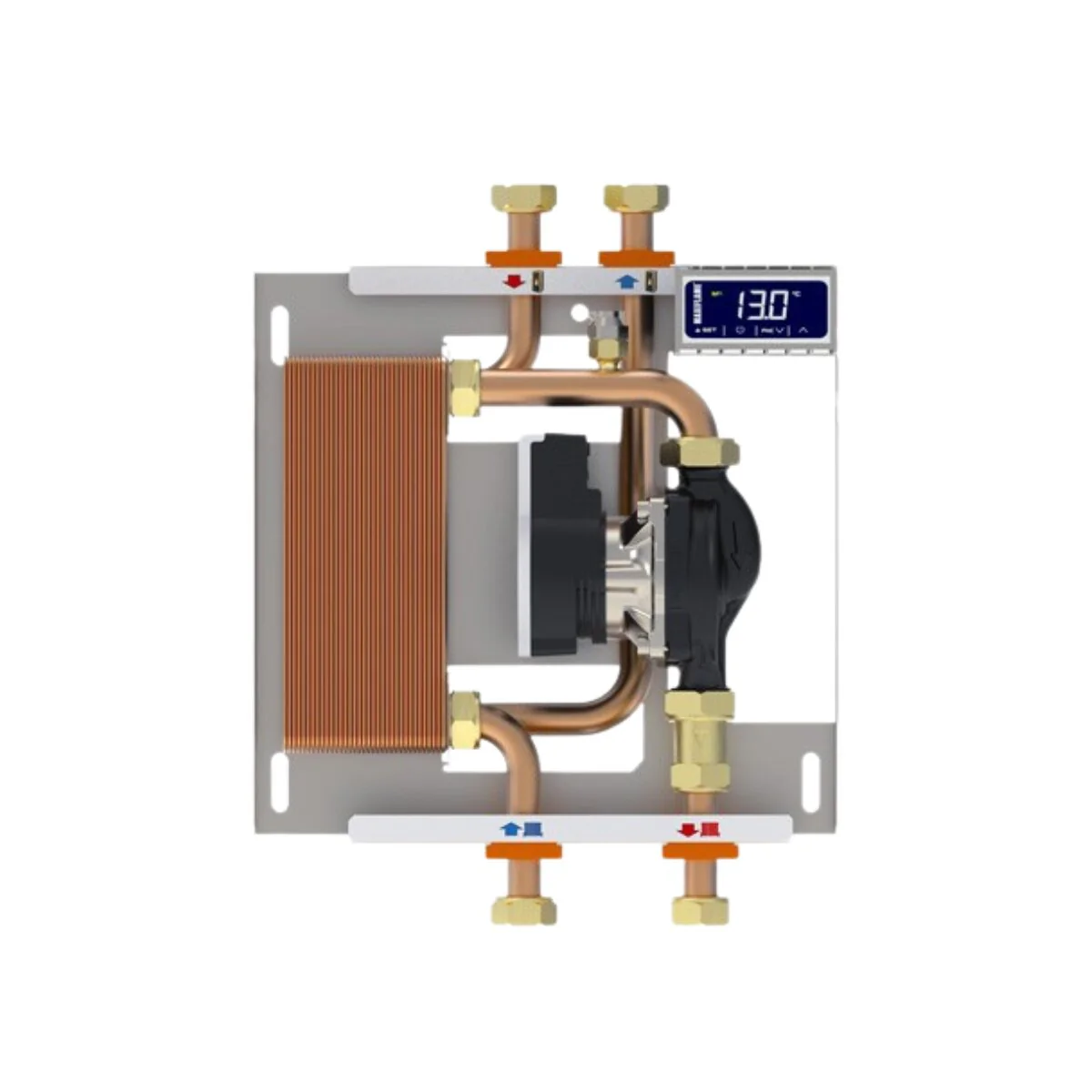

Main components

The module is complete and ready for installation:

• one or two Wilo PARA 15/6 SC high-efficiency circulators

• AISI 316 L stainless steel plate exchanger

• air vent valve

• non-return valve

• integrated HBL electronic control unit

• wall fixing kit

• cover box included



Main technical data

• Connections: G 3/4”

• Maximum operating pressure: 3 bar

• Exchanger: AISI 316 L stainless steel

• Circulator: Wilo PARA 15/6 SC

• Application range: approx. 25–30 kW



Installation

The module is installed on the wall between:

• traditional boiler

• thermoproduct

• heating system

It automatically manages flows and priorities between generators, making the system simple and reliable.

Installation must be carried out by qualified technical personnel.



The MX115/1 HBL Mini is the ideal choice for those who want:

• integrate two heating systems professionally

• reduce energy costs

• have a safe, automatic and high-performance system

A compact but essential module for transforming your system into a modern and efficient one.



NB: FOR FURTHER TECHNICAL DETAILS WE RECOMMEND VIEWING THE ATTACHED TECHNICAL DATA SHEET.



WARRANTY

The warranty is the official Maxiflame one and lasts 2 years.
