Ivar Brix M acid condensate neutralizer diameter 20

Ivar Brix M neutralizer of acid condensates produced by condensing boilers with connection kit and calcium carbonate

Brix M is the Ivar neutralizer to be installed downstream of the condensate drain of condensing boilers to prevent corrosion. The condensation produced by the exhaust fumes before expulsion has, in fact, a low PH and is therefore very acidic due to the carbon dioxide produced during combustion. It is therefore corrosive and dangerous for the domestic waste system. The Ivar Brix M condensate neutralizer allows the acidic condensate to pass through the calcium carbonate charge, neutralizing it due to the increase in PH (>6), thus allowing it to be discharged safely.

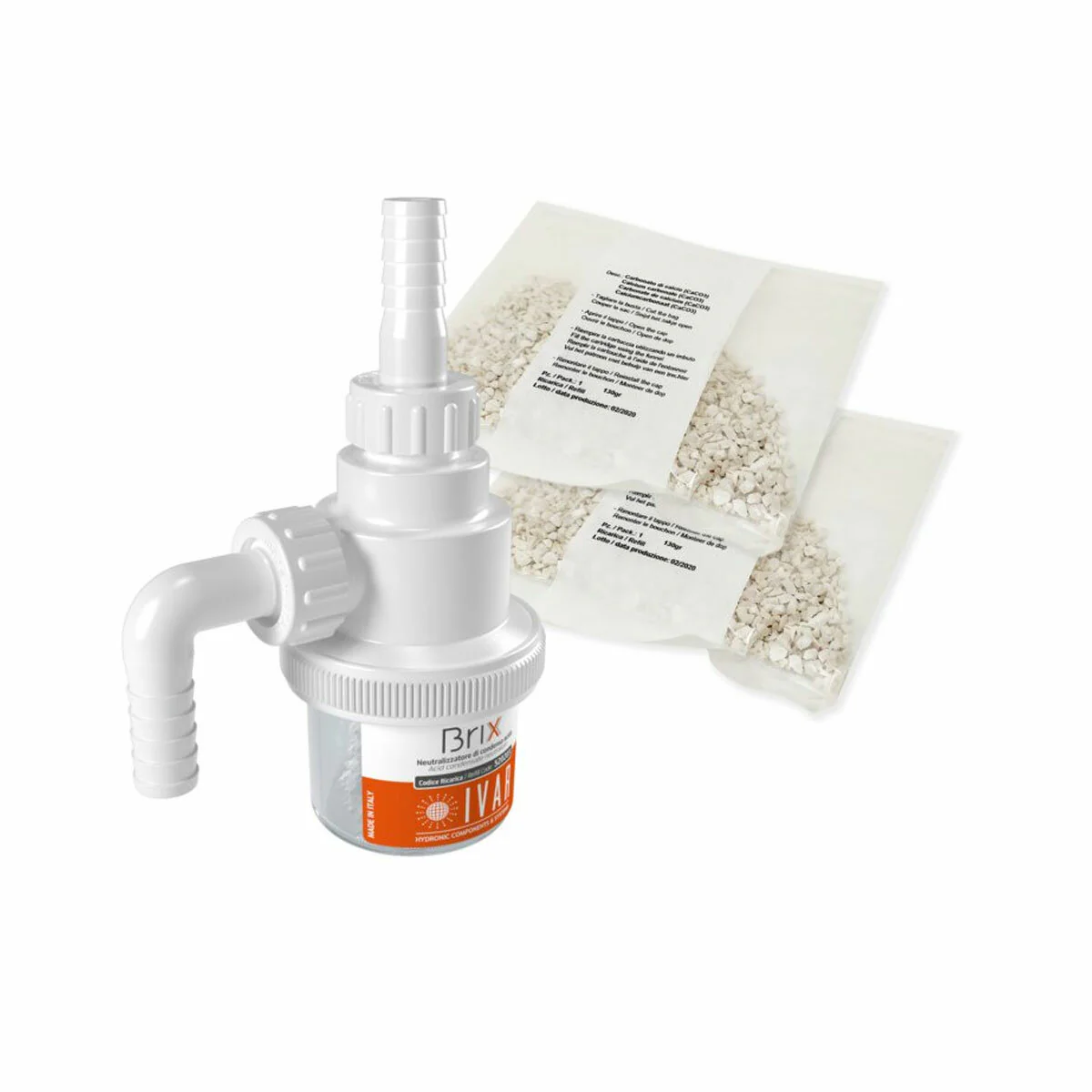

The kit includes the Brix M ø20 neutralizer, the connection kit and two packs of calcium carbonate.



CHARACTERISTICS

- Neutralizing action to prevent corrosion from acid condensation

- Quick and easy maintenance thanks to the stainless steel charge net which facilitates filling and replacing the neutralizing charge

- Reversible connections that easily adapt to different installation positions

- Compact, fits under the boiler

- Transparent body to keep the charge level under control.



TECHNICAL DATA

- Operating temperature: 5/50°C

- Compatible fluids: water / acid condensate

- Connections: Ø20 M x Ø20 M, straight/square reversible.



MATERIALS

- Transparent glass: Nylon 12

- Threaded body: PA 66

- Gaskets: peroxy EPDM

- Charging net: AISI 304 stainless steel

- Neutralizing charge: Calcium carbonate (CaCO 3 )



WARRANTY

The guarantee is the official IVAR one and lasts 2 years.
