The Story

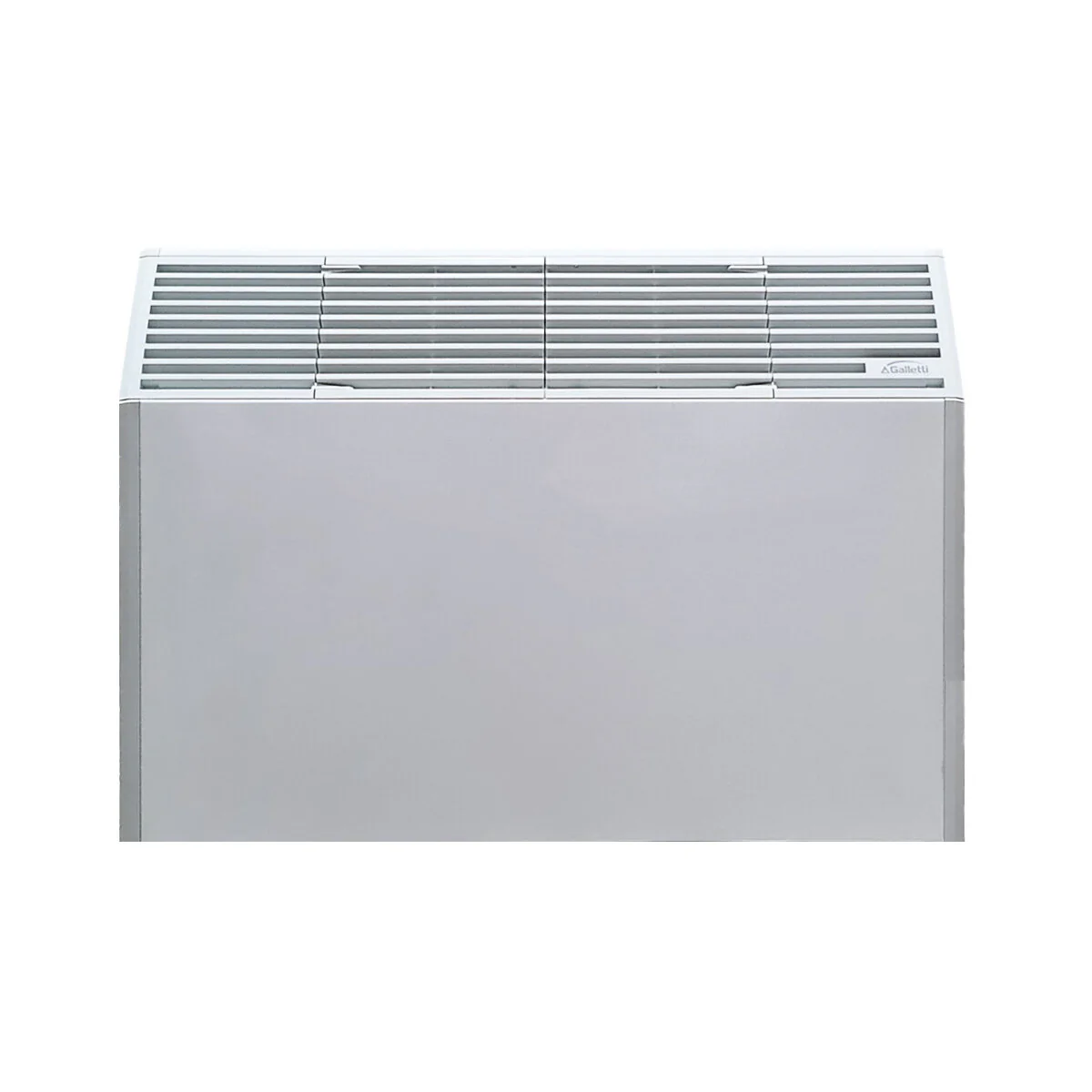

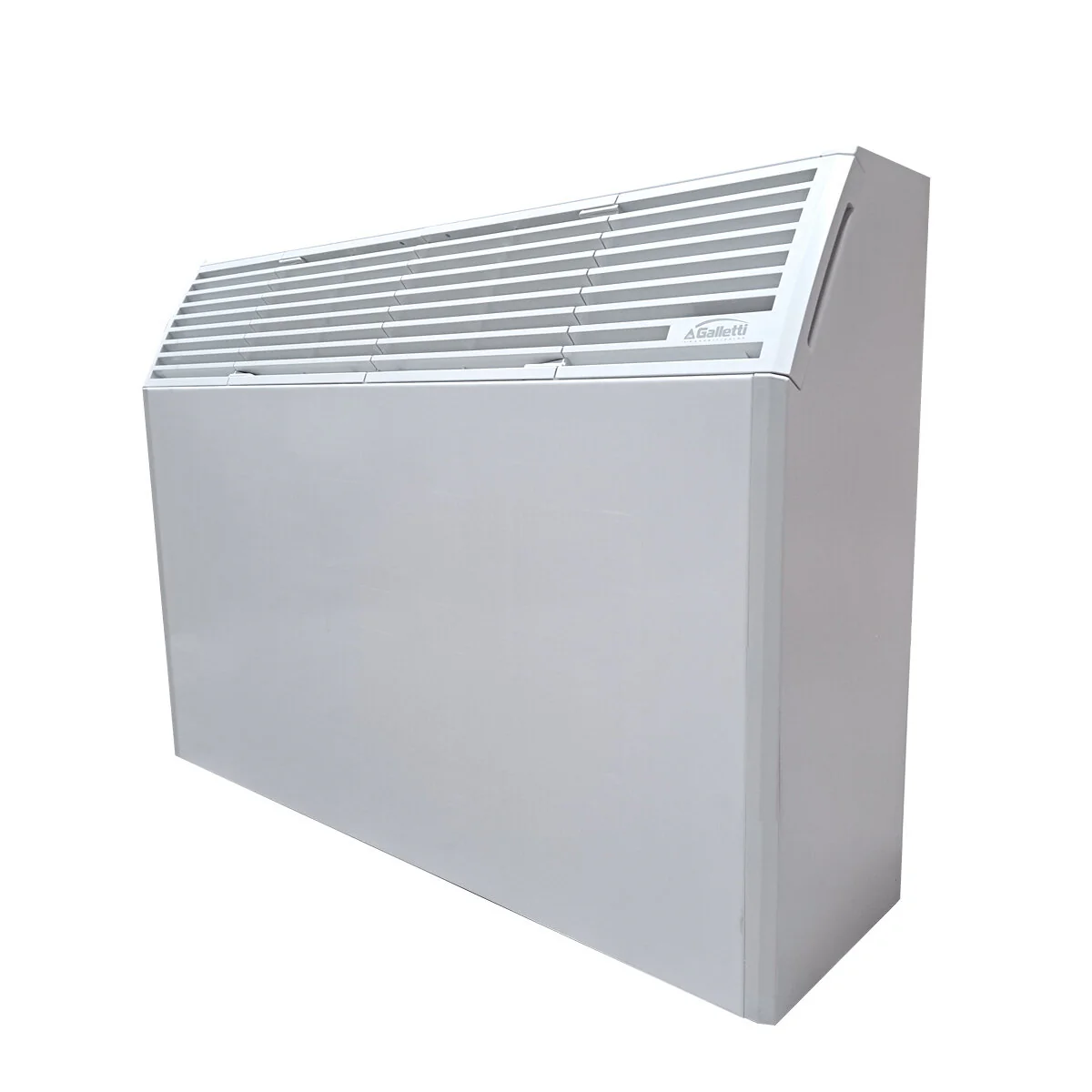

Galletti ESTRO FA 06 fan coil unit - 3.81/2.93 kW
Heating output 3.81 kW - Cooling output 2.93 kW
Ideal heating output for rooms of 39 m2 with an average height of 2.7 m
Ideal cooling performance for 30 m2 rooms with an average height of 2.7 m
Galletti ESTRO FA fan coil units represent one of the most versatile solutions in the Galletti fan coil range. These are exposed floor- standing units, designed to offer high thermal performance in small spaces. Thanks to the inclined front air outlet , the flow is distributed evenly even when the unit is installed in recesses up to approximately 150 mm deep , making them ideal for residential or commercial settings where aesthetics and functionality must coexist.
The elegant and modern cover cabinet is made with a front panel in sturdy steel sheet (10/10 mm) , completed by side panels and a 180° rotatable outlet grille in high-resistance ABS . The side doors allow easy access to the technical compartments and the control panel (optional) , facilitating installation and maintenance.
The internal structure is made of thick galvanized sheet metal (up to 15/10 mm) and insulated with self-extinguishing class 1 heat-insulating panels , to ensure maximum safety and silence during operation.
The heart of the machine is the high-efficiency heat exchange coil , made of copper and aluminum , with brass manifolds and integrated vent valves . The entire unit is mounted as standard with left-hand connections , but can be rotated 180° to adapt to any system configuration. The hydraulic connections are reversible during installation.
The electric motor , with three or six speeds , is mounted on anti-vibration supports and equipped with thermal protection and permanent capacitor , ensuring silent operation and long life .
The statically and dynamically balanced double inlet centrifugal fans are made of antistatic ABS with wing profile blades and offer uniform airflow and optimal performance, even at the lowest speeds.
The filtration system uses a regenerable polypropylene honeycomb air filter , mounted on a galvanized sheet metal frame with a protective mesh . It is easily removable for cleaning and guarantees consistently clean air and consistent quality over time.
In short, ESTRO FA combines efficiency, silence, and discreet design , offering an ideal solution for those seeking an elegant and compact solution that guarantees maximum comfort in both new installations and renovations where space is limited. If the environment imposes depth or niche constraints, or requires a more compact installation, the Estro FA fan coil is the best choice.
DIMENSIONS
Width 984 mm_Height 556 mm_Depth 228 mm
Weight 26 kg
WARRANTY
The warranty is the official Galletti one and lasts 2 years.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Galletti ESTRO FA 06 fan coil unit - 3.81/2.93 kW
Heating output 3.81 kW - Cooling output 2.93 kW
Ideal heating output for rooms of 39 m2 with an average height of 2.7 m
Ideal cooling performance for 30 m2 rooms with an average height of 2.7 m
Galletti ESTRO FA fan coil units represent one of the most versatile solutions in the Galletti fan coil range. These are exposed floor- standing units, designed to offer high thermal performance in small spaces. Thanks to the inclined front air outlet , the flow is distributed evenly even when the unit is installed in recesses up to approximately 150 mm deep , making them ideal for residential or commercial settings where aesthetics and functionality must coexist.
The elegant and modern cover cabinet is made with a front panel in sturdy steel sheet (10/10 mm) , completed by side panels and a 180° rotatable outlet grille in high-resistance ABS . The side doors allow easy access to the technical compartments and the control panel (optional) , facilitating installation and maintenance.
The internal structure is made of thick galvanized sheet metal (up to 15/10 mm) and insulated with self-extinguishing class 1 heat-insulating panels , to ensure maximum safety and silence during operation.
The heart of the machine is the high-efficiency heat exchange coil , made of copper and aluminum , with brass manifolds and integrated vent valves . The entire unit is mounted as standard with left-hand connections , but can be rotated 180° to adapt to any system configuration. The hydraulic connections are reversible during installation.
The electric motor , with three or six speeds , is mounted on anti-vibration supports and equipped with thermal protection and permanent capacitor , ensuring silent operation and long life .
The statically and dynamically balanced double inlet centrifugal fans are made of antistatic ABS with wing profile blades and offer uniform airflow and optimal performance, even at the lowest speeds.
The filtration system uses a regenerable polypropylene honeycomb air filter , mounted on a galvanized sheet metal frame with a protective mesh . It is easily removable for cleaning and guarantees consistently clean air and consistent quality over time.
In short, ESTRO FA combines efficiency, silence, and discreet design , offering an ideal solution for those seeking an elegant and compact solution that guarantees maximum comfort in both new installations and renovations where space is limited. If the environment imposes depth or niche constraints, or requires a more compact installation, the Estro FA fan coil is the best choice.
DIMENSIONS
Width 984 mm_Height 556 mm_Depth 228 mm
Weight 26 kg
WARRANTY
The warranty is the official Galletti one and lasts 2 years.
